This class takes care of placing views and labels into a grid format for this window. This class will also take care of linking the views and deleting a view. More...

Inheritance diagram for NIREPDisplay:

[legend]

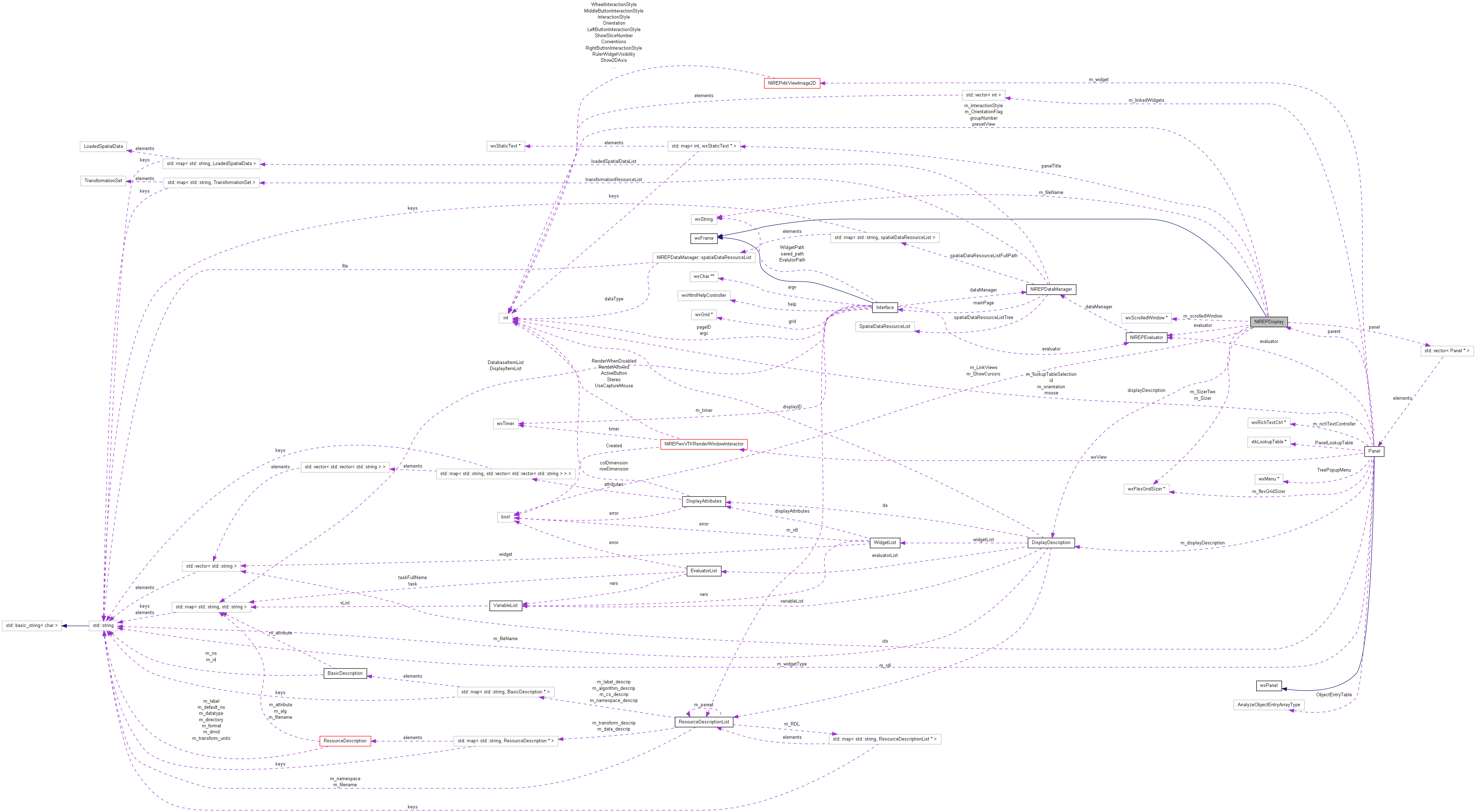

Collaboration diagram for NIREPDisplay:

[legend]

List of all members.

Public Member Functions
void	CreateGrid ()
	This function is the main function for this class. This will add in the.
void	CreateNIREPDisplay (const std::string &FileName)
void	DeleteWidget (const int &Location)
	This function works but needs to be changed.
void	EditPanel (int row, int col, bool editViewPanel=false)
int	GetColumns ()
	Get the number of columns from the sizer.
DisplayDescription *	GetDisplayDescription ()
	Return the DisplayDescription that is created in this class from.
wxString	GetFileName ()
	Get the display description filename for this display.
Panel *	GetPanel (int r, int c)
Panel *	GetPanel (int i)
wxStaticText *	GetPanelTitle (int panelID)
	Get the label of the panel that is specfied. This is.
int	GetPresetView ()
void	LinkViews (bool val)
	Link all the views (true) or unlink all the views (false)
void	LinkViews (std::vector< int > Panels)
	Link the panels that are passed in.
	NIREPDisplay (wxWindow parent, NIREPEvaluator ev, const std::string &FileName="", int id=wxID_ANY, const wxString &title=wxT(""), const wxPoint &pos=wxDefaultPosition, const wxSize &size=wxDefaultSize, long style=wxDEFAULT_FRAME_STYLE, const wxString &name=wxT("Frame"))
	Class constructor.
void	OnAddColumnClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnAddLandmarksClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnAddObjectMapsClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnAddRowClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnCloseClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnEditDisplayFileClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnEditPanelClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnGroup1Click (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnGroup2Click (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnGroup3Click (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnLockAllClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnLockColsClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnLockRowsClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnNewWindowClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnNextGroupClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnOpenDisplayDescriptionClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnPreviousGroupClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnSaveClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnSingleAlgorithmComparisonClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnTurnOffAllCursorsClick (wxCommandEvent &event)
	Turn off cursors for all displayed widgets.
void	OnTurnOffTitlesClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnTurnOnAllCursorsClick (wxCommandEvent &event)
	Turn on cursors for all displayed widgets.
void	OnTurnOnTitlesClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	OnUnLockAllClick (wxCommandEvent &event)
	wxEVT_COMMAND_MENU_SELECTED event handler for ID_MENU
void	RemoveAll (void)
	Remove all the panels from this window.
void	Render (void)
	Run through all the panels and call render on them.
void	SetColumns (int col)
	Set the size of the columns and run through the sizer and add growable columns if the sizer had less columns then what was passed in.
void	SetDisplayDescription (DisplayDescription *dd)
void	SetFileName (wxString fn)
	Set the display discription filename for this display.
void	SetPresetView (int pv)
void	ShowCursors (bool value)
	Run through the panels and show cursors if value true or turn them off if value is false.
void	UnLinkViews (std::vector< int > LinkedPanels, std::vector< int > UnLinkedPanels)
	Run through the unlinked panels. Check the linked vector in each unlinked panel and make sure that if there is a panel in the linkedPanels and in the panel that is not supposed to be linked that the panel is taken out. I.E. if linkedPanels has 1,2 and unlinked panels has 0,3,4 and panel 0 has panel 1 in the linked panels vector that we take panel 1 out.
void	UpdatePanels ()
	~NIREPDisplay ()
	Class Destructor.

Detailed Description

This class takes care of placing views and labels into a grid format for this window. This class will also take care of linking the views and deleting a view.

Notes

Work in progress

Dependencies

Libraries:

Bugs

None that I know of right now.

Change Log

Constructor & Destructor Documentation

NIREPDisplay::NIREPDisplay	(	wxWindow *	parent,
		NIREPEvaluator *	ev,
		const std::string &	FileName = `""`,
		int	id = `wxID_ANY`,
		const wxString &	title = `wxT("")`,
		const wxPoint &	pos = `wxDefaultPosition`,
		const wxSize &	size = `wxDefaultSize`,
		long	style = `wxDEFAULT_FRAME_STYLE`,
		const wxString &	name = `wxT ("Frame")`
	)

Class constructor.

Parameters:

FileName	std::string
ev	NIREPEvaluator
id	int
title	const wxString&
pos	const wxPoint&
size	wxSize&
style	long
name	const wxString&
parent	wxWindow*

NIREPDisplay::~NIREPDisplay ( )

Class Destructor.

Member Function Documentation

void NIREPDisplay::CreateGrid ( )

This function is the main function for this class. This will add in the.

labels and the views based on the NIREPDisplay description. So this function will run through an outer loop of the rows and an inner loop twice. The first for loop runs through the columns to place the labels and then run another for loop to place the views in.

void NIREPDisplay::CreateNIREPDisplay ( const std::string & FileName )

void NIREPDisplay::DeleteWidget ( const int & Location )

This function works but needs to be changed.

This will delete a widget and push all the other items behind it in the sizer one space forward. So the problem comes in that a widget might go into a slot for the label and a label will go into a slot for the view. So this kind of works but needs to be changed.

Parameters:

Location const int

void NIREPDisplay::EditPanel	(	int	row,
		int	col,
		bool	editViewPanel = `false`
	)

int NIREPDisplay::GetColumns ( ) [inline]

Get the number of columns from the sizer.

Returns:: int the number of the columns

DisplayDescription* NIREPDisplay::GetDisplayDescription ( ) [inline]

Return the DisplayDescription that is created in this class from.

the file that is passed in the constructor.

Returns:: DisplayDescription*

wxString NIREPDisplay::GetFileName ( ) [inline]

Get the display description filename for this display.

Panel* NIREPDisplay::GetPanel ( int i ) [inline]

Panel* NIREPDisplay::GetPanel	(	int	r,
		int	c
	)		`[inline]`

wxStaticText * NIREPDisplay::GetPanelTitle ( int panelID )

Get the label of the panel that is specfied. This is.

mostly used in the panelForm so that the user can change the label.

Parameters:

panelID int

Returns:: wxStaticText *

int NIREPDisplay::GetPresetView ( )

void NIREPDisplay::LinkViews ( bool val )

Link all the views (true) or unlink all the views (false)

Parameters:

val bool

void NIREPDisplay::LinkViews ( std::vector< int > Panels )

Link the panels that are passed in.

Parameters:

Panels std::vector<int>

void NIREPDisplay::OnAddColumnClick ( wxCommandEvent & event )
