ResourceDescription Class Reference

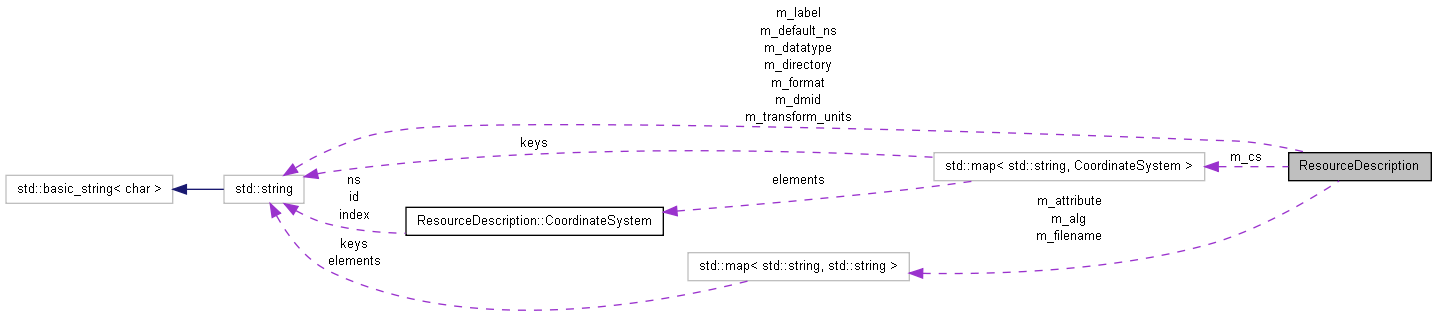

Collaboration diagram for ResourceDescription:

List of all members.

Classes
struct	CoordinateSystem
Public Types
typedef std::map< std::string, std::string >	AlgList
typedef std::map< std::string, std::string >	AttributeList
typedef std::map< std::string, CoordinateSystem >	CSList
typedef std::map< std::string, std::string >	FilenameList
Public Member Functions
void	AddAlgorithm (std::string key, const std::string &algorithmID)
void	AddAttribute (std::string key, const std::string &value)
void	AddCS (std::string key, CoordinateSystem cs)
void	AddFilename (const std::string &index, const std::string &filename)
void	Clear ()
	Removes all characters from strings and all elements from maps.
void	ClearAlgorithms ()
void	ClearAttributes ()
void	ClearCSList ()
void	ClearFilenames ()
const std::string	CreateCSnsid (const std::string &index)
TiXmlElement *	CreateDOM (const std::string &tag)
	Constructs a DOM (Document Object Model) from the member variables input DOM (Document Object Model)
std::string	CreateLabelDMID ()
	Return a constructed dmid if label is present or empty string.
const std::string	CreateReferenceCSnsid ()
	Return namespace & id of the last/reference coordinate system or empty string on error Returns a string and not an alias to a string.
std::string	CreateTransformDMID ()
	Return a constructed dmid if label is present or empty string.
bool	FillUsingDom (TiXmlElement *descrip)
	Sets the member variables of class to values given by the input DOM.
std::string	GetAlgorithm (std::string key)
	Accessor function for algorithm descriptions.
std::string	GetAttribute (std::string key)
	Accessor functions for non-required resource attributes.
const CoordinateSystem *	GetCS (std::string &index)
	Accessor functions for Coordinate System.
const CSList *	GetCS ()
	Accessor functions for Coordinate System.
std::string &	GetDataType ()
	Accessor functions for data types. Data types correspond to IMAGE, OBJMAP, CONTOUR, etc.
std::string &	GetDefaultNS ()
	Accessor functions for default namespace.
std::string &	GetDirectory ()
	Accessor functions for directory. Directory is appended to relative filenames.
std::string &	GetDMID ()
	Accessor functions for dmid.
std::string	GetFilename (const std::string &index, bool normalize=true)
	Accessor functions for filename list.
std::string &	GetFormat ()
	Accessor functions for transform format. Transform format correspond to DISPLACEMENT, DISPLACEMENT3, 3D_SICLE_COEFF, WARP_COEFF, etc.
std::string &	GetLabel ()
	Accessor functions for label.
const size_t	GetNumAlg ()
	Return number of algorithms.
const size_t	GetNumCS ()
	Return number of coordinate systems.
std::string &	GetTransformUnits ()
	Accessor functions for transform units. Transform units correspond to physical space, image space, or unit cube space.
	ResourceDescription (TiXmlElement *descrip, std::string default_ns)
	ResourceDescription (std::string default_ns)
	Input parameter is the default namespace Member objects initialize themselves automatically.
void	SetDataType (const std::string &datatype)
void	SetDefaultNS (std::string default_ns)
void	SetDirectory (const std::string &directory)
void	SetDMID (std::string dmid)
void	SetFormat (const std::string &format)
void	SetLabel (std::string label)
void	SetTransformUnits (const std::string &transform_units)
	~ResourceDescription ()
	Destructor clears all member objects.

---

Member Typedef Documentation

typedef std::map<std::string, std::string> ResourceDescription::AlgList

typedef std::map<std::string, std::string> ResourceDescription::AttributeList

typedef std::map<std::string, CoordinateSystem> ResourceDescription::CSList

typedef std::map<std::string, std::string> ResourceDescription::FilenameList

---

Constructor & Destructor Documentation

ResourceDescription::ResourceDescription

(

std::string

default_ns

)

[inline]

Input parameter is the default namespace Member objects initialize themselves automatically.

ResourceDescription::ResourceDescription	(	TiXmlElement *	descrip,
		std::string	default_ns
	)		[inline]

ResourceDescription::~ResourceDescription

(

)

[inline]

Destructor clears all member objects.

---

Member Function Documentation

void ResourceDescription::AddAlgorithm	(	std::string	key,
		const std::string &	algorithmID
	)		[inline]

void ResourceDescription::AddAttribute	(	std::string	key,
		const std::string &	value
	)		[inline]

void ResourceDescription::AddCS	(	std::string	key,
		CoordinateSystem	cs
	)		[inline]

void ResourceDescription::AddFilename	(	const std::string &	index,
		const std::string &	filename
	)		[inline]

void ResourceDescription::Clear

(

void

)

Removes all characters from strings and all elements from maps.

void ResourceDescription::ClearAlgorithms

(

)

[inline]

void ResourceDescription::ClearAttributes

(

)

[inline]

void ResourceDescription::ClearCSList

(

)

[inline]

void ResourceDescription::ClearFilenames

(

)

[inline]

const std::string ResourceDescription::CreateCSnsid

(

const std::string &

index

)

[inline]

Return id of the last/reference coordinate system or NULL on error Returns a string and not an alias to a string

TiXmlElement * ResourceDescription::CreateDOM

(

const std::string &

tag

)

Constructs a DOM (Document Object Model) from the member variables input DOM (Document Object Model)

Notes

attributes list user specific non-required information

std::string ResourceDescription::CreateLabelDMID

(

)

[inline]

Return a constructed dmid if label is present or empty string.

const std::string ResourceDescription::CreateReferenceCSnsid

(

)

[inline]

Return namespace & id of the last/reference coordinate system or empty string on error Returns a string and not an alias to a string.

std::string ResourceDescription::CreateTransformDMID

(

)

[inline]

Return a constructed dmid if label is present or empty string.

bool ResourceDescription::FillUsingDom

(

TiXmlElement *

descrip

)

Sets the member variables of class to values given by the input DOM.

Notes

attributes is used for listing user specific non-required information Errors in XML will result in a return value of false. In future, need to do a better job of reporting the errors returned by Tiny XML.

Notes

Required XML tags: resource and spatialdata resource must have an id attribute Optional XML tags: data_attributes resource_attributes is used for listing user specific non-required information resource_attributes can be missing from XML and if present does not need any elements. There is no error checking in tiny XML so any error in XML will result in a silent exit from routine.

std::string ResourceDescription::GetAlgorithm

(

std::string

key

)

[inline]

Accessor function for algorithm descriptions.

Parameters:

[in]

key

= algorithm id

Returns:

algorithm specified by index or empty string

std::string ResourceDescription::GetAttribute

(

std::string

key

)

[inline]

Accessor functions for non-required resource attributes.

const CSList* ResourceDescription::GetCS

(

)

[inline]

Accessor functions for Coordinate System.

const CoordinateSystem* ResourceDescription::GetCS

(

std::string &

index

)

[inline]

Accessor functions for Coordinate System.

std::string& ResourceDescription::GetDataType

(

)

[inline]

Accessor functions for data types. Data types correspond to IMAGE, OBJMAP, CONTOUR, etc.

std::string& ResourceDescription::GetDefaultNS

(

)

[inline]

Accessor functions for default namespace.

std::string& ResourceDescription::GetDirectory

(

)

[inline]

Accessor functions for directory. Directory is appended to relative filenames.

Leave case of directory alone, i.e., do not convert to lower case

std::string& ResourceDescription::GetDMID

(

)

[inline]

Accessor functions for dmid.

std::string ResourceDescription::GetFilename	(	const std::string &	index,
		bool	normalize = true
	)		[inline]

Accessor functions for filename list.

Parameters:

index

corresponds to the filename map index. If only one filename, then index is "0". If there are 3 filenames, then valid index values are "0", "1", and "2" corresponding to the first, second and third filenames.

std::string& ResourceDescription::GetFormat

(

)

[inline]

Accessor functions for transform format. Transform format correspond to DISPLACEMENT, DISPLACEMENT3, 3D_SICLE_COEFF, WARP_COEFF, etc.

std::string& ResourceDescription::GetLabel

(

)

[inline]

Accessor functions for label.

const size_t ResourceDescription::GetNumAlg

(

)

[inline]

Return number of algorithms.

const size_t ResourceDescription::GetNumCS

(

)

[inline]

Return number of coordinate systems.

std::string& ResourceDescription::GetTransformUnits

(

)

[inline]

Accessor functions for transform units. Transform units correspond to physical space, image space, or unit cube space.

void ResourceDescription::SetDataType

(

const std::string &

datatype

)

[inline]

void ResourceDescription::SetDefaultNS

(

std::string

default_ns

)

[inline]

void ResourceDescription::SetDirectory

(

const std::string &

directory

)

[inline]

void ResourceDescription::SetDMID

(

std::string

dmid

)

[inline]

void ResourceDescription::SetFormat

(

const std::string &

format

)

[inline]

void ResourceDescription::SetLabel

(

std::string

label

)

[inline]

void ResourceDescription::SetTransformUnits

(

const std::string &

transform_units

)

[inline]
