Wipe Class Reference

2D synchronized viewer of a 3D image. More...

Inheritance diagram for Wipe:

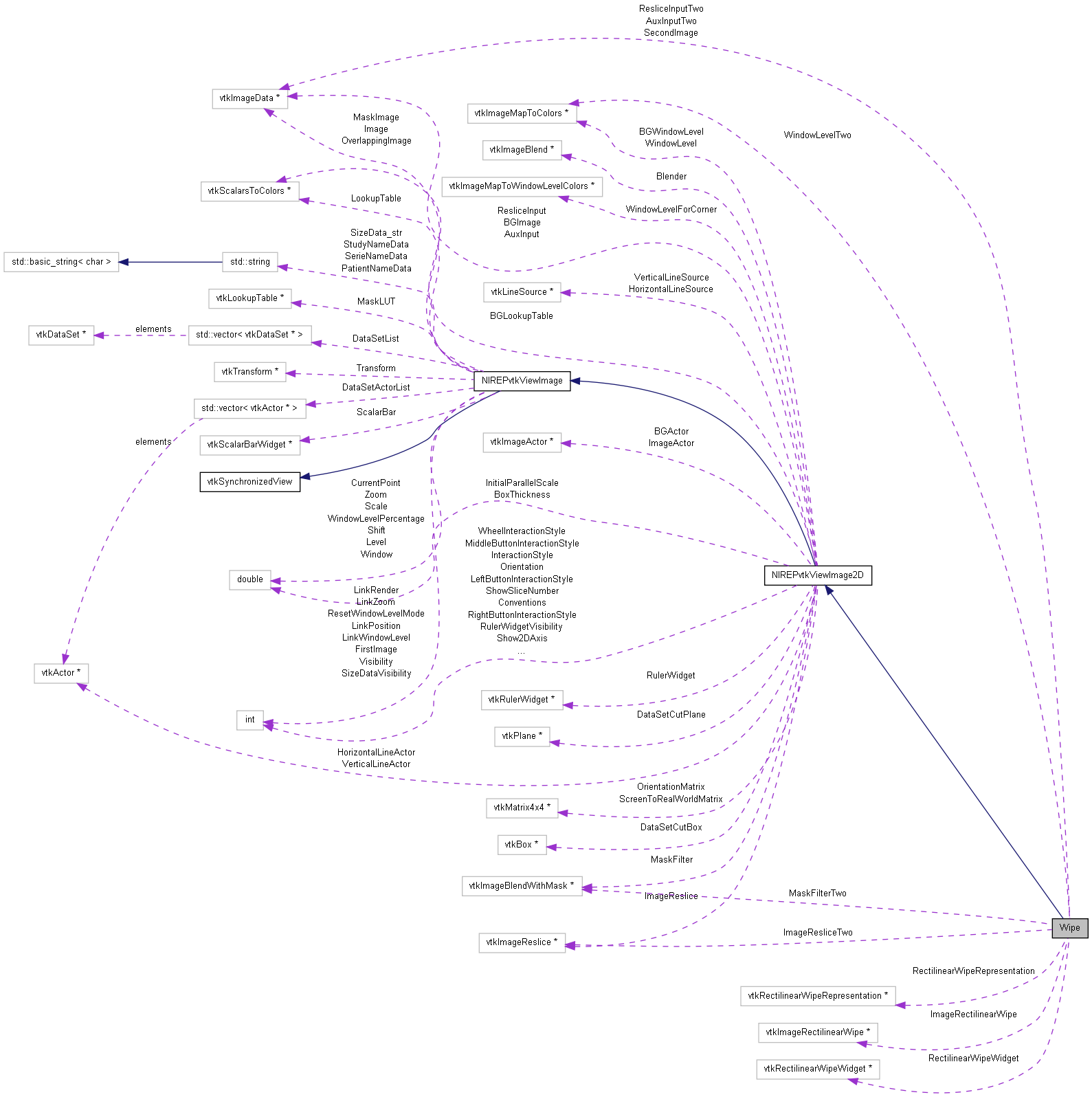

Collaboration diagram for Wipe:

List of all members.

Public Member Functions
virtual vtkActor *	AddDataSet (vtkDataSet *dataset, vtkProperty *property=NULL)
virtual void	SetImage (vtkImageData *image)
virtual void	SetLevel (double)
virtual void	SetLookupTable (vtkScalarsToColors *lut)
virtual void	SetOrientation (unsigned int orientation)
void	SetSecondImage (vtkImageData *image)
virtual void	SetWindow (double)
virtual vtkActor *	SyncAddPolyData (vtkPolyData *polydata, vtkProperty *property=NULL, double thickness=0.2)
virtual void	UpdatePosition ()
	vtkGetObjectMacro (SecondImage, vtkImageData)
	vtkTypeRevisionMacro (Wipe, NIREPvtkViewImage2D)
Static Public Member Functions
static Wipe *	New ()
Protected Member Functions
void	UpdateImageActor ()
	Wipe ()
	~Wipe ()
Protected Attributes
vtkImageData *	AuxInputTwo
	internal use: image to input to the mask filter or image blender
vtkImageRectilinearWipe *	ImageRectilinearWipe
vtkImageReslice *	ImageResliceTwo
vtkImageBlendWithMask *	MaskFilterTwo
vtkRectilinearWipeRepresentation *	RectilinearWipeRepresentation
vtkRectilinearWipeWidget *	RectilinearWipeWidget
	Wipe classes from vtk.
vtkImageData *	ResliceInputTwo
	internal use: image to input to the reslicer
vtkImageData *	SecondImage
	overlapping image
vtkImageMapToColors *	WindowLevelTwo
	to map the image to the current window level

---

Detailed Description

2D synchronized viewer of a 3D image.

Author:

Pierre Fillard & Marc Traina & Nicolas Toussaint.

This class allows to view 2D orthogonal slices (namely axial, sagittal and coronal) of a 3D image. This class implements lots of features like: various possible interactions (positioning, zooming, windowing), coloring of the slice w.r.t. a lookup table, overlapping of a second image, overlapping of a mask image (image of labels). Display conventions can be chosen between radiologic (the left of the patient appears on the right of the screen) and neurologic (left is left and right is right).

It uses a synchronization mechanisms between other views. Views are linked together using a cycle graph structure (implemented in the base class

---

Constructor & Destructor Documentation

Wipe::Wipe

(

)

[protected]

Wipe::~Wipe

(

)

[protected]

---

Member Function Documentation

vtkActor * Wipe::AddDataSet	(	vtkDataSet *	dataset,
		vtkProperty *	property = NULL
	)		[virtual]

Add a dataset to the view. The dataset will be display as an intersection of it with the displayed image slice, i.e., tetrahedron will be displayed as triangles, triangles as lines, lines as points. A vtkProperty can be specified to specify the freshly generated actor properties.

if (dataset->GetActualMemorySize() > 20000) { vtkWarningMacro(<< "DataSet is to big for this projection type !\n"); doit = false; }

Reimplemented from NIREPvtkViewImage2D.

static Wipe* Wipe::New

(

)

[static]

Reimplemented from NIREPvtkViewImage2D.

void Wipe::SetImage

(

vtkImageData *


)

[virtual]

Set the image to display.

Reimplemented from NIREPvtkViewImage2D.

void Wipe::SetLevel

(

double

l

)

[virtual]

Set/Get window/level for mapping pixels to colors.

Reimplemented from NIREPvtkViewImage2D.

void Wipe::SetLookupTable

(

vtkScalarsToColors *

lut

)

[virtual]

Set/Get a user-defined lookup table to color the image with.

In the case of a shift/scale, one must set the lut range to values without this shift/scale, because the object can be shared by different views.

Due to the same problem as above (shift/scale), one must copy the lut so that it does not change values of the shared object.

Reimplemented from NIREPvtkViewImage2D.

void Wipe::SetOrientation

(

unsigned int

orientation

)

[virtual]

Set the orientation of the image.

Parameters:

orientation

0 is XY (axial), 1 is YZ (sagittal), 2 is XZ (coronal).

Reimplemented from NIREPvtkViewImage2D.

void Wipe::SetSecondImage

(

vtkImageData *


)

Set a second image, which will be the second input into the wipe widget.

void Wipe::SetWindow

(

double

w

)

[virtual]

Set/Get window/level for mapping pixels to colors.

Reimplemented from NIREPvtkViewImage2D.

vtkActor * Wipe::SyncAddPolyData	(	vtkPolyData *	polydata,
		vtkProperty *	property = NULL,
		double	thickness = 0.2
	)		[virtual]

This method is similar to AddDataSet(), except it only works with vtkPolyData. It cuts the polydata using 2 planes defined by the current image slice being visualized and a user-provided thickness (generally the spacing between 2 consecutive slices). For instance, it works nicely with lines: AddDataSet() turns lines into points while AddPolyData() displays lines as short segments.

Reimplemented from NIREPvtkViewImage2D.

void Wipe::UpdateImageActor

(

)

[protected]

GEC NOT SURE ABOUT LINES BELOW YET

Reimplemented from NIREPvtkViewImage2D.

void Wipe::UpdatePosition

(

void

)

[virtual]

Reimplemented from NIREPvtkViewImage2D.

Wipe::vtkGetObjectMacro	(	SecondImage	,
		vtkImageData
	)

Get the overlapping image (if any).

Wipe::vtkTypeRevisionMacro	(	Wipe	,
		NIREPvtkViewImage2D
	)

---

Member Data Documentation

vtkImageData* Wipe::AuxInputTwo [protected]

internal use: image to input to the mask filter or image blender

vtkImageRectilinearWipe* Wipe::ImageRectilinearWipe [protected]

vtkImageReslice* Wipe::ImageResliceTwo [protected]

vtkImageReslice is the swiss-army-knife of image geometry filters: It can permute, rotate, flip, scale, resample, deform, and pad image data in any combination with reasonably high efficiency.

vtkImageBlendWithMask* Wipe::MaskFilterTwo [protected]

vtkRectilinearWipeRepresentation* Wipe::RectilinearWipeRepresentation [protected]

vtkRectilinearWipeWidget* Wipe::RectilinearWipeWidget [protected]

Wipe classes from vtk.

vtkImageData* Wipe::ResliceInputTwo [protected]

internal use: image to input to the reslicer

vtkImageData* Wipe::SecondImage [protected]

overlapping image

vtkImageMapToColors* Wipe::WindowLevelTwo [protected]

to map the image to the current window level
