NIREPvtkViewImage Class Reference

Base class for 2D/3D image viewers, see NIREPvtkViewImage2D and vtkViewImage3D. More...

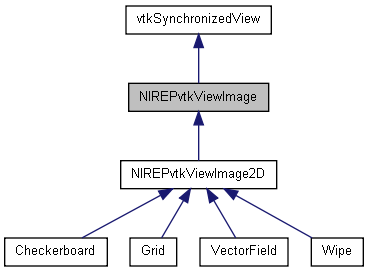

Inheritance diagram for NIREPvtkViewImage:

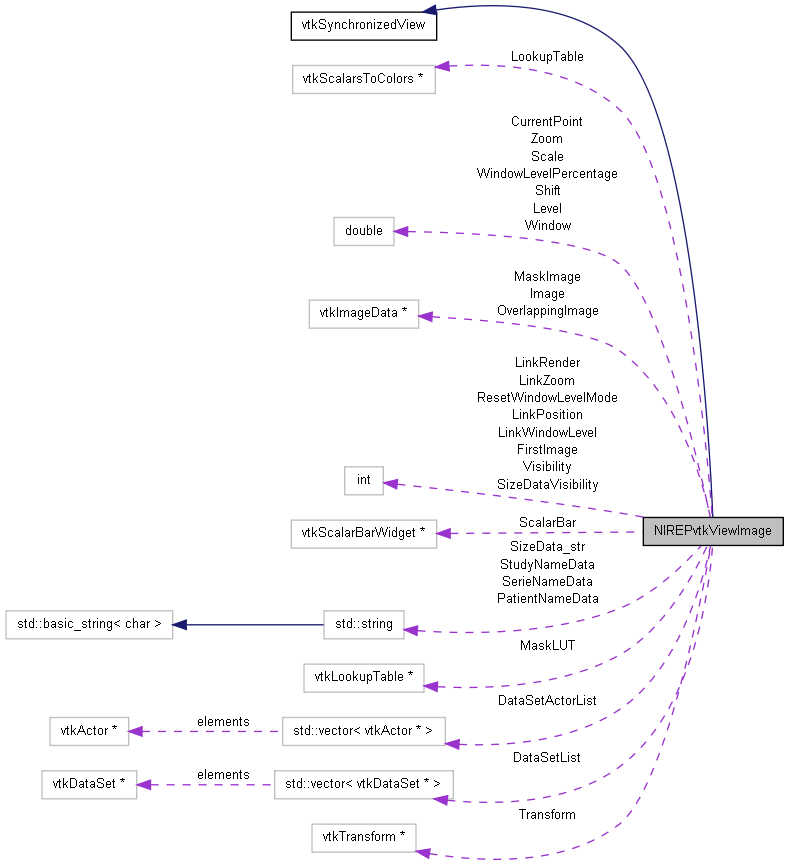

Collaboration diagram for NIREPvtkViewImage:

List of all members.

Public Types
enum	{ FullRange, UserDefinedPercentage }
enum	DirectionIds { X_ID, Y_ID, Z_ID, NB_DIRECTION_IDS }
enum	EventIds { ViewImagePositionChangeEvent = (vtkCommand::UserEvent+1), ViewImageWindowLevelChangeEvent, ViewImageZoomChangeEvent }
enum	PlanIds { SAGITTAL_ID, CORONAL_ID, AXIAL_ID, NB_PLAN_IDS }
Public Member Functions
virtual vtkActor *	AddDataSet (vtkDataSet *dataset, vtkProperty *property=NULL)
virtual void	ColorDataSetByArray (vtkDataSet *dataset, const char *arrayname, vtkColorTransferFunction *transfer)
virtual void	EndWindowing (void)
virtual const double *	GetCurrentPoint () const
void	GetCurrentPoint (double p_point[3]) const
virtual double	GetCurrentPointDoubleValue ()
virtual void	GetCurrentVoxelCoordinates (int p_coordinates[3])
vtkDataSet *	GetDataSet (unsigned int i)
vtkActor *	GetDataSetActor (unsigned int i)
vtkActor *	GetDataSetActor (vtkDataSet *dataset)
vtkDataSet *	GetDataSetFromActor (vtkActor *actor)
virtual vtkScalarsToColors *	GetLookupTable (void) const
virtual const char *	GetPatientNameData (void) const
virtual void	GetPositionForSlice (int slice, int orientation, double pos[3])
int	GetScalarBarVisibility (void) const
virtual const char *	GetSerieNameData (void) const
virtual const char *	GetSizeData (void) const
virtual int	GetSlice (unsigned int p_orientation)
virtual int	GetSliceForPosition (const double pos[3], unsigned int p_orientation)
virtual const char *	GetStudyNameData (void) const
void	GetVoxelCoordinates (double pos[3], int p_coordinates[3])
virtual double	GetWholeMaxPosition (unsigned int p_axis)
virtual double	GetWholeMinPosition (unsigned int p_axis)
virtual bool	HasDataSet (vtkDataSet *dataset)
virtual void	ModifyActors (vtkDataSet *dataset, bool cellColors)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	RemoveAllDataSet ()
virtual void	RemoveDataSet (vtkDataSet *dataset)
virtual void	RemoveMaskImage (void)
virtual void	RemoveOverlappingImage (void)
virtual void	Reset (void)
virtual void	ResetCurrentPoint ()
virtual void	ResetWindowLevel ()
virtual void	ResetZoom ()
virtual void	SetCurrentPoint (const double p_point[3])
virtual void	SetLevel (double lev)
virtual void	SetLookupTable (vtkScalarsToColors *lut)
virtual void	SetMaskImage (vtkImageData *mask, vtkLookupTable *lut)
virtual void	SetOverlappingImage (vtkImageData *image)
virtual void	SetPatientNameData (const char *str)
void	SetPosition (const double p_point[3])
void	SetResetWindowLevelMode (const int &mode)
void	SetResetWindowLevelModeToFullRange (void)
void	SetResetWindowLevelModeToUserDefinedPercentage (void)
void	SetScalarBarVisibility (int v)
virtual void	SetSerieNameData (const char *str)
virtual void	SetSizeData (const char *str)
virtual void	SetSizeDataVisibility (int val)
virtual void	SetSlice (unsigned int p_orientation, int p_slice)
virtual void	SetStudyNameData (const char *str)
virtual void	SetWindow (double win)
virtual void	SetWindowLevelFrom (NIREPvtkViewImage *p_view)
virtual void	SetZoom (double zoom)
virtual void	SetZSlice (int p_slice)
virtual void	StartWindowing (void)
vtkActor *	SyncAddDataSet (vtkDataSet *dataset, vtkProperty *property=NULL)
void	SyncColorDataSetByArray (vtkDataSet *dataset, const char *arrayname, vtkColorTransferFunction *transfer)
void	SyncEndWindowing (void)
void	SyncModifyActors (vtkDataSet *dataset, bool cellColors)
void	SyncRemoveAllDataSet ()
void	SyncRemoveDataSet (vtkDataSet *dataset)
void	SyncRemoveMaskImage ()
void	SyncRemoveOverlappingImage ()
void	SyncReset ()
void	SyncResetCurrentPoint ()
void	SyncResetPosition ()
void	SyncResetWindowLevel ()
void	SyncResetZoom ()
void	SyncSetCurrentPoint (const double p_point[3])
void	SyncSetLevel (double l)
void	SyncSetLookupTable (vtkScalarsToColors *lut)
void	SyncSetMaskImage (vtkImageData *mask, vtkLookupTable *lut)
void	SyncSetOverlappingImage (vtkImageData *image)
void	SyncSetPosition (const double p_point[3])
virtual void	SyncSetSlice (unsigned int p_orientation, int p_slice)
void	SyncSetWindow (double w)
void	SyncSetZoom (double factor)
void	SyncSetZSlice (int p_slice)
void	SyncStartWindowing (void)
virtual void	UpdatePosition (void)
	vtkBooleanMacro (Visibility, int)
	vtkBooleanMacro (SizeDataVisibility, int)
	vtkBooleanMacro (ScalarBarVisibility, int)
	vtkGetMacro (Zoom, double)
	vtkGetMacro (Scale, double)
	vtkGetMacro (LinkZoom, int)
	vtkGetMacro (Shift, double)
	vtkGetMacro (Window, double)
	vtkGetMacro (SizeDataVisibility, int)
	vtkGetMacro (LinkPosition, int)
	vtkGetMacro (WindowLevelPercentage, double)
	vtkGetMacro (Level, double)
	vtkGetMacro (LinkWindowLevel, int)
	vtkGetMacro (Visibility, int)
	vtkGetObjectMacro (OverlappingImage, vtkImageData)
	vtkGetObjectMacro (Image, vtkImageData)
	vtkGetObjectMacro (ScalarBar, vtkScalarBarWidget)
	vtkGetObjectMacro (MaskImage, vtkImageData)
	vtkGetObjectMacro (Transform, vtkTransform)
	vtkSetMacro (Scale, double)
	vtkSetMacro (WindowLevelPercentage, double)
	vtkSetMacro (LinkWindowLevel, int)
	vtkSetMacro (Visibility, int)
	vtkSetMacro (LinkZoom, int)
	vtkSetMacro (LinkPosition, int)
	vtkSetMacro (Shift, double)
	vtkSetObjectMacro (Transform, vtkTransform)
	vtkSetObjectMacro (Image, vtkImageData)
	vtkTypeRevisionMacro (NIREPvtkViewImage, vtkSynchronizedView)
Static Public Member Functions
static unsigned int	GetOrthogonalAxis (unsigned int p_plan)
static NIREPvtkViewImage *	New ()
Protected Member Functions
virtual void	Initialize (void)
	NIREPvtkViewImage ()
virtual void	RegisterImage (vtkImageData *image)
virtual void	Uninitialize (void)
	vtkGetMacro (FirstImage, int)
	vtkSetMacro (FirstImage, int)
	~NIREPvtkViewImage ()
Protected Attributes
std::vector< vtkActor * >	DataSetActorList
std::vector< vtkDataSet * >	DataSetList

---

Detailed Description

Base class for 2D/3D image viewers, see NIREPvtkViewImage2D and vtkViewImage3D.

Author:

: Pierre Fillard & Marc Traina & Nicolas Toussaint

---

Member Enumeration Documentation

anonymous enum

Enumerator:

FullRange
UserDefinedPercentage

enum NIREPvtkViewImage::DirectionIds

Indices use in Vtk referentials corresponding to the standard x, y and z unitary vectors.

Enumerator:

X_ID
Y_ID
Z_ID
NB_DIRECTION_IDS

enum NIREPvtkViewImage::EventIds

Enumerator:

ViewImagePositionChangeEvent
ViewImageWindowLevelChangeEvent
ViewImageZoomChangeEvent

enum NIREPvtkViewImage::PlanIds

Ids of the 2D plan displayed in the view. Each 2D plan is defined with regard to one of the 3 directions (x,y,z).

Enumerator:

SAGITTAL_ID
CORONAL_ID
AXIAL_ID
NB_PLAN_IDS

---

Constructor & Destructor Documentation

NIREPvtkViewImage::NIREPvtkViewImage

(

)

[protected]

NIREPvtkViewImage::~NIREPvtkViewImage

(

)

[protected]

---

Member Function Documentation

vtkActor * NIREPvtkViewImage::AddDataSet	(	vtkDataSet *	dataset,
		vtkProperty *	property = NULL
	)		[virtual]

Add a dataset to the view (polydata or grid). The dataset will be cut by planes defining the current slice displayed. This results in a loss of dimensionality, i.e. tetrahedron will be displayed as triangles, triangles as lines, lines as points. A vtkProperty of the dataset can be specified. This method is synchronized.

Reimplemented in Checkerboard, Grid, NIREPvtkViewImage2D, VectorField, and Wipe.

void NIREPvtkViewImage::ColorDataSetByArray	(	vtkDataSet *	dataset,
		const char *	arrayname,
		vtkColorTransferFunction *	transfer
	)		[virtual]

This method colorizes a given dataset (previously added with AddDataSet()) by one of its arrays It doesn't handle colorization by a specific component yet. If the array contains multi-component scalars, it takes the norm of the vector. This method is synchronized.

virtual void NIREPvtkViewImage::EndWindowing

(

void

)

[inline, virtual]

This method is called just after windowing. Subclass should give it a meaning.

virtual const double* NIREPvtkViewImage::GetCurrentPoint

(

)

const [inline, virtual]

Returns the current point.

void NIREPvtkViewImage::GetCurrentPoint

(

double

p_point[3]

)

const [inline]

double NIREPvtkViewImage::GetCurrentPointDoubleValue

(

)

[virtual]

Get the image value of the current point in double.

void NIREPvtkViewImage::GetCurrentVoxelCoordinates

(

int

p_coordinates[3]

)

[virtual]

Fill the p_coordinates parameter with the coordinates of the voxel corresponding to the current point.

vtkDataSet * NIREPvtkViewImage::GetDataSet

(

unsigned int

i

)

vtkActor * NIREPvtkViewImage::GetDataSetActor

(

unsigned int

i

)

vtkActor * NIREPvtkViewImage::GetDataSetActor

(

vtkDataSet *

dataset

)

vtkDataSet * NIREPvtkViewImage::GetDataSetFromActor

(

vtkActor *

actor

)

virtual vtkScalarsToColors* NIREPvtkViewImage::GetLookupTable

(

void

)

const [inline, virtual]

unsigned int NIREPvtkViewImage::GetOrthogonalAxis

(

unsigned int

p_plan

)

[static]

Get the id of the axis orthogonal to the given plan (x for sagittal, y for coronal and z for axial).

virtual const char* NIREPvtkViewImage::GetPatientNameData

(

void

)

const [inline, virtual]

void NIREPvtkViewImage::GetPositionForSlice	(	int	slice,
		int	orientation,
		double	pos[3]
	)		[virtual]

Given a slice and an orientation, returns the real world coordinates.

int NIREPvtkViewImage::GetScalarBarVisibility

(

void

)

const [inline]

virtual const char* NIREPvtkViewImage::GetSerieNameData

(

void

)

const [inline, virtual]

virtual const char* NIREPvtkViewImage::GetSizeData

(

void

)

const [inline, virtual]

int NIREPvtkViewImage::GetSlice

(

unsigned int

p_orientation

)

[virtual]

int NIREPvtkViewImage::GetSliceForPosition	(	const double	pos[3],
		unsigned int	p_orientation
	)		[virtual]

Return the Z slice for the given position pos in real world coordinates. The Z slice is relative to a given orientation.

virtual const char* NIREPvtkViewImage::GetStudyNameData

(

void

)

const [inline, virtual]

void NIREPvtkViewImage::GetVoxelCoordinates	(	double	pos[3],
		int	p_coordinates[3]
	)

Return the voxel coordinates of the point pos.

double NIREPvtkViewImage::GetWholeMaxPosition

(

unsigned int

p_axis

)

[virtual]

Get the end position of the last pixel in the given axis.

double NIREPvtkViewImage::GetWholeMinPosition

(

unsigned int

p_axis

)

[virtual]

Get the begining position of the first pixel in the given axis. Note : the position (0,0,0) is the center of the first pixel (0,0,0) so the return value can be negative, depending of the origin of the image.

bool NIREPvtkViewImage::HasDataSet

(

vtkDataSet *

dataset

)

[virtual]

Test if the dataset was already passed to the view.

void NIREPvtkViewImage::Initialize

(

void

)

[protected, virtual]

Reimplemented in NIREPvtkViewImage2D.

void NIREPvtkViewImage::ModifyActors	(	vtkDataSet *	dataset,
		bool	cellColors
	)		[virtual]

This method changes the actors associated with a given dataset (previously added with AddDataSet()) to switch between the use of cell array or point data array. Used for switch between color and direction based colors of fiber bundles projections. This method is synchronized.

static NIREPvtkViewImage* NIREPvtkViewImage::New

(

)

[static]

Reimplemented in Checkerboard, Grid, NIREPvtkViewImage2D, VectorField, and Wipe.

void NIREPvtkViewImage::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Reimplemented in NIREPvtkViewImage2D.

void NIREPvtkViewImage::RegisterImage

(

vtkImageData *


)

[protected, virtual]

Register the image. Internal Use Only.

void NIREPvtkViewImage::RemoveAllDataSet

(

)

[virtual]

void NIREPvtkViewImage::RemoveDataSet

(

vtkDataSet *

dataset

)

[virtual]

This method allows you to remove a previously added dataset off the view. It simply removes the actor from the renderer. This method is synchronized.

virtual void NIREPvtkViewImage::RemoveMaskImage

(

void

)

[inline, virtual]

Remove the mask image (if any)

Reimplemented in NIREPvtkViewImage2D.

virtual void NIREPvtkViewImage::RemoveOverlappingImage

(

void

)

[inline, virtual]

Remove the overlapping image (if any)

Reimplemented in NIREPvtkViewImage2D.

virtual void NIREPvtkViewImage::Reset

(

void

)

[inline, virtual]

Reset Window-Level, current point and zoom. This method is synchronized.

void NIREPvtkViewImage::ResetCurrentPoint

(

)

[virtual]

Reset the current point to the center of the image in the 3 axes. This method is synchronized.

void NIREPvtkViewImage::ResetWindowLevel

(

)

[virtual]

Reset window level to calculated default value. This method is synchronized , except it LinkWindowLevel if set to 0.

void NIREPvtkViewImage::ResetZoom

(

void

)

[virtual]

Reset the current zoom factor.

Reimplemented in NIREPvtkViewImage2D.

void NIREPvtkViewImage::SetCurrentPoint

(

const double

p_point[3]

)

[virtual]

Change the current position of the image. This method is synchronized.

virtual void NIREPvtkViewImage::SetLevel

(

double

lev

)

[inline, virtual]

Set/Get the window/level/zoom parameter. This method is synchronized , except it LinkWindowLevel if set to 0.

Reimplemented in Checkerboard, Grid, NIREPvtkViewImage2D, VectorField, and Wipe.

virtual void NIREPvtkViewImage::SetLookupTable

(

vtkScalarsToColors *

lut

)

[inline, virtual]

Set/Get a user-defined lookup table. This method is synchronized.

Reimplemented in Checkerboard, Grid, NIREPvtkViewImage2D, VectorField, and Wipe.

virtual void NIREPvtkViewImage::SetMaskImage	(	vtkImageData *	mask,
		vtkLookupTable *	lut
	)		[inline, virtual]

Set/Get a mask image and its corresponding LookupTable. The mask image will be overlapped to the current image, and the lookup table is used to assess the color of the label: label 0 will have color given by entry 0 of the LUT, etc. The image has to be of type unsigned char. This method is synchronized.

Reimplemented in NIREPvtkViewImage2D.

virtual void NIREPvtkViewImage::SetOverlappingImage

(

vtkImageData *


)

[inline, virtual]

Set an overlapping second image. It uses an internal LUT to assess the color. It does not need to be of type unsigned char. This method is synchronized.

Reimplemented in NIREPvtkViewImage2D.

void NIREPvtkViewImage::SetPatientNameData

(

const char *

str

)

[virtual]

void NIREPvtkViewImage::SetPosition

(

const double

p_point[3]

)

[inline]

Synonym to SetCurrentPoint().

void NIREPvtkViewImage::SetResetWindowLevelMode

(

const int &

mode

)

[inline]

Specify how the ResetWindowLevel() method behaves. If set to FullRange, ResetWindowLevel() sets the contrast to match the full range of the image i.e: 0:range[0] and 255: range[1]. If set to UserDefinedPercentage, the X% highest and lowest voxels are removed to calculate the range. It is more robust to outliers that have a very high and low intensity compared to the main element of the image. The percentage is set with SetWindowLevelPercentage() (default: 0.1).

void NIREPvtkViewImage::SetResetWindowLevelModeToFullRange

(

void

)

[inline]

void NIREPvtkViewImage::SetResetWindowLevelModeToUserDefinedPercentage

(

void

)

[inline]

void NIREPvtkViewImage::SetScalarBarVisibility

(

int

v

)

[inline]

Set/Get the scalar bar visibility

void NIREPvtkViewImage::SetSerieNameData

(

const char *

str

)

[virtual]

void NIREPvtkViewImage::SetSizeData

(

const char *

str

)

[virtual]

Set/Get method for setting the size data. Size data consists in the slice number and voxel size + window/level and is displayed at the top left corner of the window.

void NIREPvtkViewImage::SetSizeDataVisibility

(

int

val

)

[virtual]

Set/Get the size data visibility.

void NIREPvtkViewImage::SetSlice	(	unsigned int	p_orientation,
		int	p_slice
	)		[virtual]

Set/Get the slice number within the current point is

Parameters:

p_slice	: the desired slice
p_orientation	: the desired slice type AXIAL, SAGITTAL, CORONAL.

void NIREPvtkViewImage::SetStudyNameData

(

const char *

str

)

[virtual]

virtual void NIREPvtkViewImage::SetWindow

(

double

win

)

[inline, virtual]

Set/Get the window/level/zoom parameter. This method is synchronized , except it LinkWindowLevel if set to 0.

Reimplemented in Checkerboard, Grid, NIREPvtkViewImage2D, VectorField, and Wipe.

void NIREPvtkViewImage::SetWindowLevelFrom

(

NIREPvtkViewImage *

p_view

)

[virtual]

Set (copy) the windows level from given view window level.

virtual void NIREPvtkViewImage::SetZoom

(

double

zoom

)

[inline, virtual]

Set/Get the window/level/zoom parameter. This method is synchronized unless LinkZoom is set to 0.

Reimplemented in NIREPvtkViewImage2D.

virtual void NIREPvtkViewImage::SetZSlice

(

int

p_slice

)

[inline, virtual]

Set the Slice to display. Z is relative to the displayed plan.

Reimplemented in NIREPvtkViewImage2D.

virtual void NIREPvtkViewImage::StartWindowing

(

void

)

[inline, virtual]

This method is called just before windowing. Subclass should give it a meaning.

vtkActor * NIREPvtkViewImage::SyncAddDataSet	(	vtkDataSet *	dataset,
		vtkProperty *	property = NULL
	)

void NIREPvtkViewImage::SyncColorDataSetByArray	(	vtkDataSet *	dataset,
		const char *	arrayname,
		vtkColorTransferFunction *	transfer
	)

void NIREPvtkViewImage::SyncEndWindowing

(

void

)

void NIREPvtkViewImage::SyncModifyActors	(	vtkDataSet *	dataset,
		bool	cellColors
	)

void NIREPvtkViewImage::SyncRemoveAllDataSet

(

)

void NIREPvtkViewImage::SyncRemoveDataSet

(

vtkDataSet *

dataset

)

void NIREPvtkViewImage::SyncRemoveMaskImage

(

)

void NIREPvtkViewImage::SyncRemoveOverlappingImage

(

)

void NIREPvtkViewImage::SyncReset

(

)

void NIREPvtkViewImage::SyncResetCurrentPoint

(

)

void NIREPvtkViewImage::SyncResetPosition

(

)

[inline]

Synonym to SyncResetCurrentPoint().

void NIREPvtkViewImage::SyncResetWindowLevel

(

)

void NIREPvtkViewImage::SyncResetZoom

(

)

void NIREPvtkViewImage::SyncSetCurrentPoint

(

const double

p_point[3]

)

void NIREPvtkViewImage::SyncSetLevel

(

double

l

)

void NIREPvtkViewImage::SyncSetLookupTable

(

vtkScalarsToColors *

lut

)

void NIREPvtkViewImage::SyncSetMaskImage	(	vtkImageData *	mask,
		vtkLookupTable *	lut
	)

void NIREPvtkViewImage::SyncSetOverlappingImage

(

vtkImageData *


)

void NIREPvtkViewImage::SyncSetPosition

(

const double

p_point[3]

)

[inline]

void NIREPvtkViewImage::SyncSetSlice	(	unsigned int	p_orientation,
		int	p_slice
	)		[virtual]

void NIREPvtkViewImage::SyncSetWindow

(

double

w

)

void NIREPvtkViewImage::SyncSetZoom

(

double

factor

)

void NIREPvtkViewImage::SyncSetZSlice

(

int

p_slice

)

void NIREPvtkViewImage::SyncStartWindowing

(

void

)

void NIREPvtkViewImage::Uninitialize

(

void

)

[protected, virtual]

Reimplemented in NIREPvtkViewImage2D.

virtual void NIREPvtkViewImage::UpdatePosition

(

void

)

[inline, virtual]

Ensure that the displayed point is up to date. Should be overriden by subclasses.

Reimplemented in Checkerboard, Grid, NIREPvtkViewImage2D, VectorField, and Wipe.

NIREPvtkViewImage::vtkBooleanMacro	(	ScalarBarVisibility	,
		int
	)

NIREPvtkViewImage::vtkBooleanMacro	(	SizeDataVisibility	,
		int
	)

NIREPvtkViewImage::vtkBooleanMacro	(	Visibility	,
		int
	)

NIREPvtkViewImage::vtkGetMacro	(	LinkZoom	,
		int
	)

NIREPvtkViewImage::vtkGetMacro	(	Shift	,
		double
	)

NIREPvtkViewImage::vtkGetMacro	(	SizeDataVisibility	,
		int
	)

NIREPvtkViewImage::vtkGetMacro	(	FirstImage	,
		int
	)		[protected]

NIREPvtkViewImage::vtkGetMacro	(	LinkWindowLevel	,
		int
	)

NIREPvtkViewImage::vtkGetMacro	(	Visibility	,
		int
	)

NIREPvtkViewImage::vtkGetMacro	(	WindowLevelPercentage	,
		double
	)

NIREPvtkViewImage::vtkGetMacro	(	Scale	,
		double
	)

NIREPvtkViewImage::vtkGetMacro	(	Window	,
		double
	)

NIREPvtkViewImage::vtkGetMacro	(	Zoom	,
		double
	)

NIREPvtkViewImage::vtkGetMacro	(	Level	,
		double
	)

NIREPvtkViewImage::vtkGetMacro	(	LinkPosition	,
		int
	)

NIREPvtkViewImage::vtkGetObjectMacro	(	MaskImage	,
		vtkImageData
	)

NIREPvtkViewImage::vtkGetObjectMacro	(	Transform	,
		vtkTransform
	)

NIREPvtkViewImage::vtkGetObjectMacro	(	OverlappingImage	,
		vtkImageData
	)

NIREPvtkViewImage::vtkGetObjectMacro	(	Image	,
		vtkImageData
	)

Get the current image.

NIREPvtkViewImage::vtkGetObjectMacro	(	ScalarBar	,
		vtkScalarBarWidget
	)

Get the ScalarBarActor.

NIREPvtkViewImage::vtkSetMacro	(	Scale	,
		double
	)

Shift/Scale are used to get the true image intensity if the image was scaled before being inputed to the view.

NIREPvtkViewImage::vtkSetMacro	(	LinkZoom	,
		int
	)

Set the zoom link ON or OFF.

NIREPvtkViewImage::vtkSetMacro	(	Visibility	,
		int
	)

Set/Get the image visibility.

NIREPvtkViewImage::vtkSetMacro	(	LinkWindowLevel	,
		int
	)

Set the color window/level link ON or OFF.

NIREPvtkViewImage::vtkSetMacro	(	LinkPosition	,
		int
	)

Set the position link ON or OFF.

NIREPvtkViewImage::vtkSetMacro	(	Shift	,
		double
	)

Shift/Scale are used to get the true image intensity if the image was scaled before being inputed to the view.

NIREPvtkViewImage::vtkSetMacro	(	WindowLevelPercentage	,
		double
	)

Set the percentage of voxels used to reset the window/level range when the reset window/level mode is set to UserDefinedPercentage.

NIREPvtkViewImage::vtkSetMacro	(	FirstImage	,
		int
	)		[protected]

NIREPvtkViewImage::vtkSetObjectMacro	(	Image	,
		vtkImageData
	)

Set the current image.

NIREPvtkViewImage::vtkSetObjectMacro	(	Transform	,
		vtkTransform
	)

Get/Set the transformation to be applied to the image.

NIREPvtkViewImage::vtkTypeRevisionMacro	(	NIREPvtkViewImage	,
		vtkSynchronizedView
	)

---

Member Data Documentation

std::vector<vtkActor*> NIREPvtkViewImage::DataSetActorList [protected]

std::vector<vtkDataSet*> NIREPvtkViewImage::DataSetList [protected]
